| Brand Name : | Lulairuide |
| Model Number : | LLRD-HR1000 |
| Certification : | iso |
| Price : | negotiable |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 100 Sets Per Year |
| Delivery Time : | 15-30days |

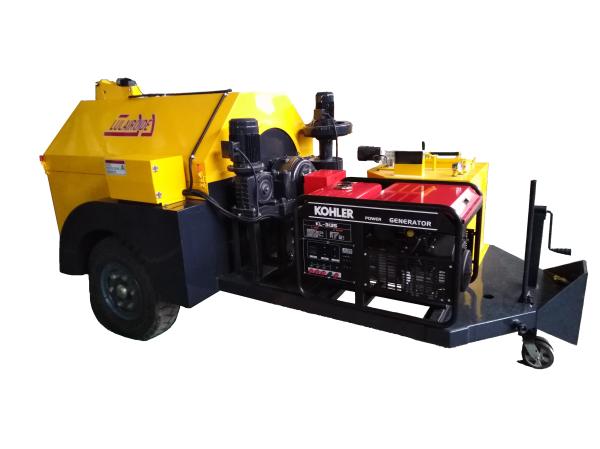

The LLRD-HR1000 drum type hot asphalt recycling equipment is used for repairing pothole of asphalt pavement to ensure the
good joint between the repair area and the original pavement,
effectively prevent water seepage and to extend the service life of
the road.
2. Construction Principle and Process
3. Parameter
| ITEM | PARAMETER | ||||
| MODEL | LLRD-HR800 | LLRD-HR1000 | |||
| FUNCTION | Heating of new asphalt mixture; heating and recycling & reuse of waste material excavated from broken road. | ||||
| DRUM PART | |||||
| ENGINE | DOMESTIC GASOLINE GENERATOR,POWER 8~10kw,LOW OIL COMSUPTION,RATED VOLTAGE 380V | ||||
| DIESEL TANK CAPACITY | 100L | ||||
| START MODE | ELECTRIC/RECOIL START | ||||
| OIL TYPE | 0#DIESEL | ||||
| CAPACITY | 800L | 1000L | |||
| HEATING MODE | IMPORTED DIESEL BURNER,220V Power:10KCAL. | ||||
| HETING METHOD | 360 degree rotation, having uniform heating | ||||
| HEATING TIME | FOR FIRST KETTLE:18/±3min,NEXT 13/±3min. | ||||
| DRIVE MODE | DRIVE BY GEAR(double reduction system) | ||||
| MIXING METHOD | DRUM MIXER | ||||
| MIXING POWER | 2.2kw | ||||
| FEEDING MODE | FORWARD ROTATION SCREW FEED | ||||
| DISCHARGE MODE | COUNTER ROTATING SCREW DISCHARGE | ||||
| DISCHARGE SPEED | 3min | ||||
| TEMPERATURE CONTROL | Automatic control, LCD temperature controller, temperature range: 0 °C -300 °C (adjustable and controllable) | ||||
| HOT ASPHALT SYSTEM | |||||
| HOT ASPHALT KETTLE VOLUME | 120L | ||||
| HEATING MODE | INDIRECT HEATING BY TRANSFER OIL | ||||
| HEATING PIPE | Full electric heating tube and can spray asphalt | ||||
| Asphalt capacity | 1~1.5T/H | ||||
| Road crack sealing machine | |||||
| Heating pipe | 220V Full electric heating tube 4m in length | ||||
| Asphalt pump | high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant | ||||
| LCD temperature controller | double LCD display(range-100~350 ) | ||||
| burner | Heating by burner, burning Power:5KCAL | ||||
| Moving parts | |||||
| Moving mode | traction type(the height can be adjusted) | ||||
| Chassis | 2 wheels or 4 wheels,single axis/double axis chassis | ||||
| Moving speed | 60Km/h | ||||
4. Features:
• Cost Effective: Millings and reclaimed asphalt pavement are 100% recycled, save the cost for patching, cost effective.
• High Efficiency: Produces a load of 1 ton every 15-20 minutes or Approx 3 tons/hr.
• Time Saving: Avoid the long lines and hassle at the asphalt plant by using the EAR-TD1000 to produce HMA at your shop or on the job site.
• Reliability: Recycle millings into plant quality or better mix year round.
• Environment Friendly: No longer do you have to throw out old chunks or millings.
• Versatility: Ability to add as much or as little hot bitumen as you want to completely customize you mix design.
|
|
