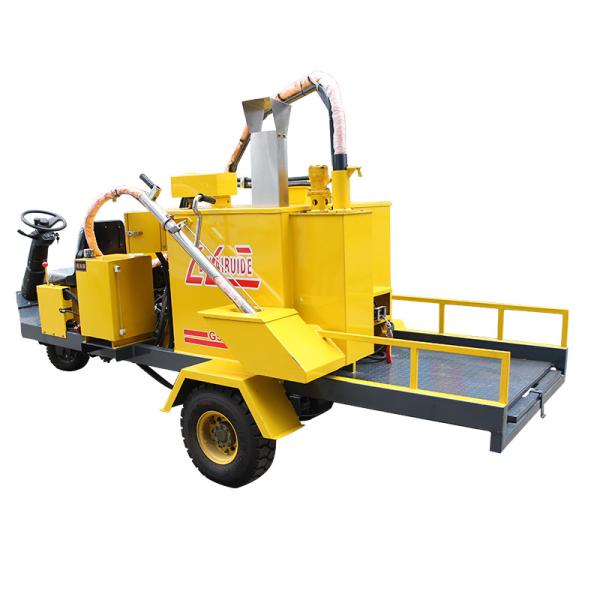

LLRD-G500 asphalt sealer is used for pavement repairing and it suitable for highway, municipal road, airport runway, country road, neighborhood and factory road, etc.

1) Net Weight: 2400kg
2) Size: 3980mm*1980mm*1830mm (L*W*H)
3) Material Melting Speed: About 40 mins
4) Hot melt kettle volume: 500L
5) Heat transfer oil / conduction oil: 120L
6) Engine: Yanmar 3TNV diesel engine
7) Engine Power: 25hp
8) Fuel Tank: 90L
9) Hydraulic fuel tank capacity: 90L
10) Burner: Imported Diesel Burner
11) Burning Power: 100000 kcal
12) Temperature control: monitoring the temperature of thermal oil filling, sealing materials and electric heating tube, the computer automatic control (when reaching the construction temperature, it would automatically conduct heat preservation procedure)
13) Temperature control scope: 0~299ºC
14) Insulating System: 220 V mains supply insulation for optional choice, do not need to start the device (optional choice)
15) Feeding mechanism: the integration of discharging control switch; Infinite speed control; Equipped with a leak-proof switch
16) Feeding hose: The electric heating tube is 6M in length, can rotate 360°, with technology in spout incubator, avoid blocking pipe problem caused by low temperature
17) Discharging flow: 0 - 60L; the infinite speed regulation control
18) Hydraulic lifting device: Lifting the slotting machine and hot air spraying gun onto the supporting plate, thus reducing labor intensity
19) Moving Method: Hydraulic rear wheel driving during the whole process; self-propelling or hand-push type as you like
20) Vehicle suspension: leverage spring compression type of shock absorber
21) TractionSpeed: 60km/h
22) Self-propelling Speed: 10km/h; the infinite speed regulation control

Hydraulic tools interface for optional choice, can be connected to any kind of hydraulic tools (hydraulic crushing picks, hydraulic cutting saw, hydraulic pump. etc)(optional choice)

3. Features and benefits :
1. Concrete,Asphalt and Cement Road Crack Sealing Machine
2.Independent research and development in hydraulic drive technology, low emissions, low energy consumption, energy saving and environmental protection.
3. Advanced intelligent ignition, detection of temperature control technology
4. The unique design of oil casing hot melt
5. Unique thermal cycle heating system design
6. Efficient design of discharge system
7. The machine safety low center of gravity design
