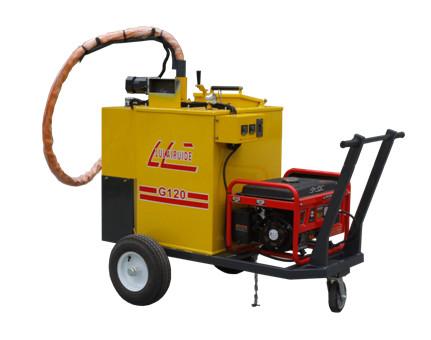

    Mobile 100L Hot Asphalt Crack Filler Machine 30min Melting Iso Approval

    Ask Lasest Price
    Brand Name : Lulairuide
    Model Number : LLRD-G120
    Certification : iso
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,
    Supply Ability : 300 Sets Per Year
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Mobile 100L Hot Asphalt Crack Filler Machine 30min Melting Iso Approval

    Asphalt Crack Sealing Road Machine


    Product description:

    Crack sealing machine is a road maintenance machine for repairing the pavement cracks, which is used for heating and pouring the sealant evenly into the treated cracks to achieve the waterproof purpose. It’s composed of chassis, power, driving motors, control system, heating system and pumping system. It’s used with router, vacuum cleaner or hot air lance. It applies to the residential, municipal, highway, freeway, airport and other pavement.

    Parameter:

    ModelLLRD-G120
    Moving Methodhand-push or self propelling
    Material Melting Time30 Min
    Weight460KG
    Electric heating hose4M in length, electric heating during the whole procedure, more smoothly when sending out the glue
    Size1850*1050*1200mm(L*W*H)
    Heat conduction oil40L
    GeneratorDomestic Generator (or customized generator according to customer's needs)
    Fuel Tank30L
    Output Power50HZ
    Mixing MethodManual operated Mixing
    Rated Power2.0 KW
    Hot melt kettle volume100-120L
    Voltage220V
    Heating Methodheat transfer oil indirect heating
    Burner:Italian Diesel Burner
    Asphalt pumphigh pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant
    Burning Power50000KCAL
    Turning Methodturn the rear universal, flexible steering, convenient in mobility.
    Characteristics:
    1. Domestic branded generator or other generator as customers' needs.
    Rated Power: 2.0 kw
    Voltage: 220 v

    2. Hot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle.

    3. Temperature monitoring system, LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube.

    4. The heating system of Italian imported Riello diesel burner can not only provide the ideal heating effect, it's also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations.


    5. External type material pump: greatly simplifies the equipment maintenance procedures and improves the service life of the machine.


    6. Electric heating tube: 4 m in length, can rotate 360 degrees. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow.


    7. Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution.

    Advantages and Features:

    NO.Advantages
    1Imported diesel burner
    2Convenient in movement: Hand push or Traction type dual-purposed
    3Electric heating tube is 4 m in length, can rotate 360 degrees.
    4You could choose hand push or self-propelling during construction process as need. It could save labor cost and reduce using cost as well
    5Heat conduction oil indirectly heats the joint sealant, material pulling is controlled through infinitely adjustable-speed motor
    6Could seal various kinds of road cracks (asphalt road, cement road, etc.)
    7Could customize heat melting kettle
    8You could choose to equip the sealing gun with night-working lights.

    Features:
    1. Small volume and light weight makes it move easily. You could choose hand push or self-propelling during construction process as need, which brings great benefit to efficient construction. Irrigation of sealant is evenly and efficient.

    2. Heat conduction oil indirectly heats the joint sealant, effectively prevent high temperature carbonization of the crack seal material
    3. Equipped with imported Italy Riello diesel burner; heating is more efficient.
    4. The use of advanced control instrument, can clearly display and adjust the temperature of electric heating tube and heat conduction oil. The operator is clear about the operation of the machine at a glance.
    5. The electric heating hose can rotate 360 degrees, and in use process need no clean-up.
    6. Discharge pump is controlled through infinitely adjustable-speed motor, can regulate the flow of sealant according to need.


    Company introduction:


    Founded in 2002, Hefei Huayang Construction Machinery Co., Ltd is located in the cultural and historical city - Hefei, Anhui Province, China. After more than 20 years of development, our company has developed into a full line of equipment manufacturer with fully integrated design, products development, manufacturing and distribution capabilities for both domestic and export markets.

    We possess our own proprietary intellectual righted "LULAIRUIDE" road maintenance equipments. We adopt methods of serialization, standardization and modularization during our manufacturing process. Besides, we integrate advanced design concepts with actual needs of the customers. At the meantime, we gather customers′ suggestions and improve our products continuously, to keep standing at the leading edge of this industry′s technology development scope. We continuously stick the rules to provide our customers with professional, timely and considerate after-sales services. We welcome customer both at home and abroad to contact with us to make mutual benefit and get win-win cooperation. To create profit to our dear customer and let us grow stronger hand in hand.
