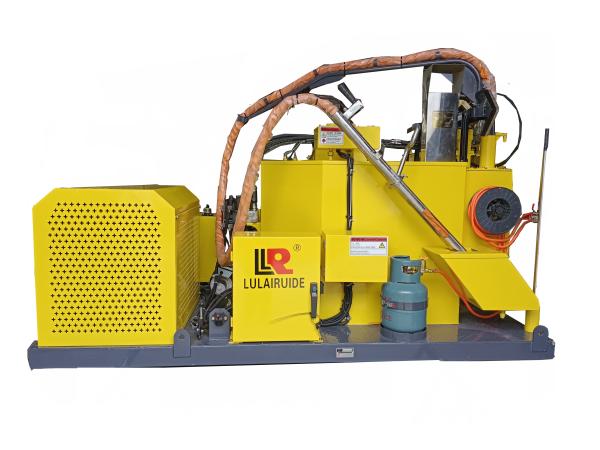

Road Repair 500L Asphalt Crack Sealing Machine Hydraulic Mixing

Hefei Huayang Construction Machinery Co., Ltd
Contact Now
    Buy cheap Road Repair 500L Asphalt Crack Sealing Machine Hydraulic Mixing from wholesalers

    Buy cheap Road Repair 500L Asphalt Crack Sealing Machine Hydraulic Mixing from wholesalers
    • Buy cheap Road Repair 500L Asphalt Crack Sealing Machine Hydraulic Mixing from wholesalers

    Road Repair 500L Asphalt Crack Sealing Machine Hydraulic Mixing

    Ask Lasest Price
    Brand Name : Lulairuide
    Model Number : LLRD-G500
    Certification : iso
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 Sets Per Year
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Road Repair 500L Asphalt Crack Sealing Machine Hydraulic Mixing

    Road Repair Machine 500L Asphalt Crack Sealing Machine For Sale
    1. Construction Principle and Process:
    1. The cracks have been eroded by rainwater for a long time, which makes the road damage more serious.
    2. Using pavement router to open 1~2 cm standard incision to ensure the effect of filling.
    3. Use jointing equipment to better fill the sealant to the cracks.
    4. 3-5 years after crack repair can effectively prevent rainwater erosion.

    2.Specification:


    1) Net Weight: 2400kg
    2) Size: 3980mm*1980mm*1830mm (L*W*H)
    3) Material Melting Speed: About 40 mins
    4) Hot melt kettle volume: 500L
    5) Heat transfer oil / conduction oil: 120L
    6) Engine: Yanmar 3TNV diesel engine
    7) Engine Power: 25hp
    8) Fuel Tank: 90L
    9) Hydraulic fuel tank capacity: 90L
    10) Burner: Imported Diesel Burner
    11) Burning Power: 100000 kcal
    12) Temperature control: monitoring the temperature of thermal oil filling, sealing materials and electric heating tube, the computer automatic control (when reaching the construction temperature, it would automatically conduct heat preservation procedure)
    13) Temperature control scope: 0~299ºC
    14) Insulating System: 220 V mains supply insulation for optional choice, do not need to start the device (optional choice)
    15) Feeding mechanism: the integration of discharging control switch; Infinite speed control; Equipped with a leak-proof switch
    16) Feeding hose: The electric heating tube is 6M in length, can rotate 360°, with technology in spout incubator, avoid blocking pipe problem caused by low temperature
    17) Discharging flow: 0 - 60L; the infinite speed regulation control
    18) Hydraulic lifting device: Lifting the slotting machine and hot air spraying gun onto the supporting plate, thus reducing labor intensity
    19) Moving Method: Hydraulic rear wheel driving during the whole process; self-propelling or hand-push type as you like
    20) Vehicle suspension: leverage spring compression type of shock absorber
    21) TractionSpeed: 60km/h
    22) Self-propelling Speed: 10km/h; the infinite speed regulation control


    Hydraulic tools interface for optional choice, can be connected to any kind of hydraulic tools (hydraulic crushing picks, hydraulic cutting saw, hydraulic pump. etc)(optional choice)


    3. Our Services:


    Before sales: Engineering Consultance Service & Technical Support
    After sales: Process clients' feedback and or problems during the operation of the equipments/machines within 24 hours
    OEM service: We accept OEM orders and 80% of our clients are enjoying OEM services.
